Link Deutsch DTM4 Connector Kit, Female Receptacle with Pins (DTM4F)
$20.44
Taxes and shipping shown at checkout. Typical delivery is 3 to 7 business days across Canada.
✓ Confirmed-fit parts — add your vehicle in your Garage to check fitment.

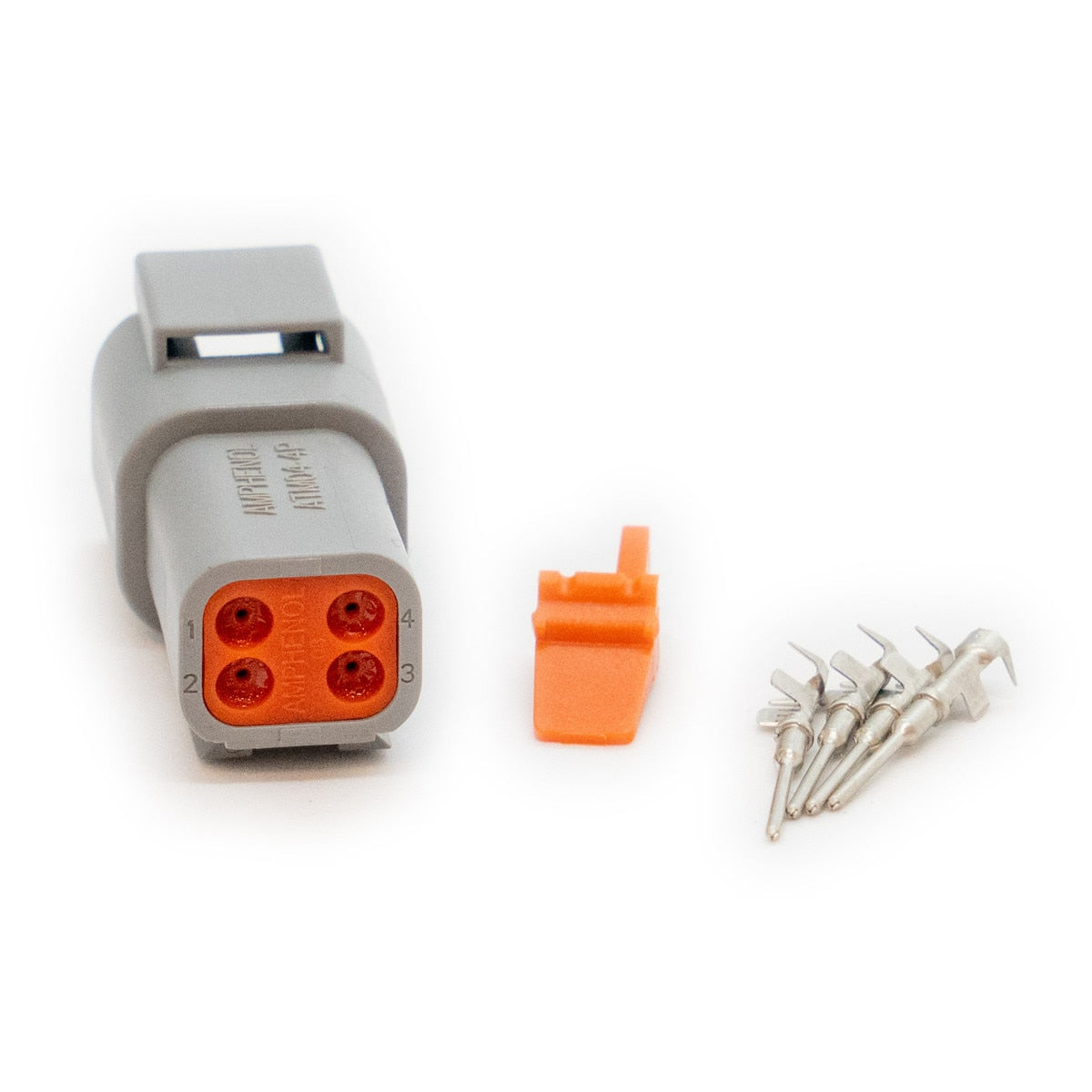

A 4-way Deutsch DTM receptacle kit for connecting CAN devices into a Link CAN bus. It holds the female housing (receptacle), wedgelock and pins, and Link lists it as the mating connector kit for the CANJST4 cable.
Highlights
- Female housing (receptacle), wedgelock and pins
- Mates with the DTM4 male end used on Link CAN cables, such as the CANJST4 (101-0198)
- Environmentally sealed against moisture, dust and vibration
- Rated 7.5 A, takes 22-16 AWG (0.35-1 mm²) wire
Specifications
- Connector: Deutsch DTM, 4-way, female receptacle
- Wire range: 22-16 AWG (0.35-1 mm²)
- Max continuous current: 7.5 A
- Weight: 10 g
- In the box: DTM4 receptacle housing, wedgelock, pins
