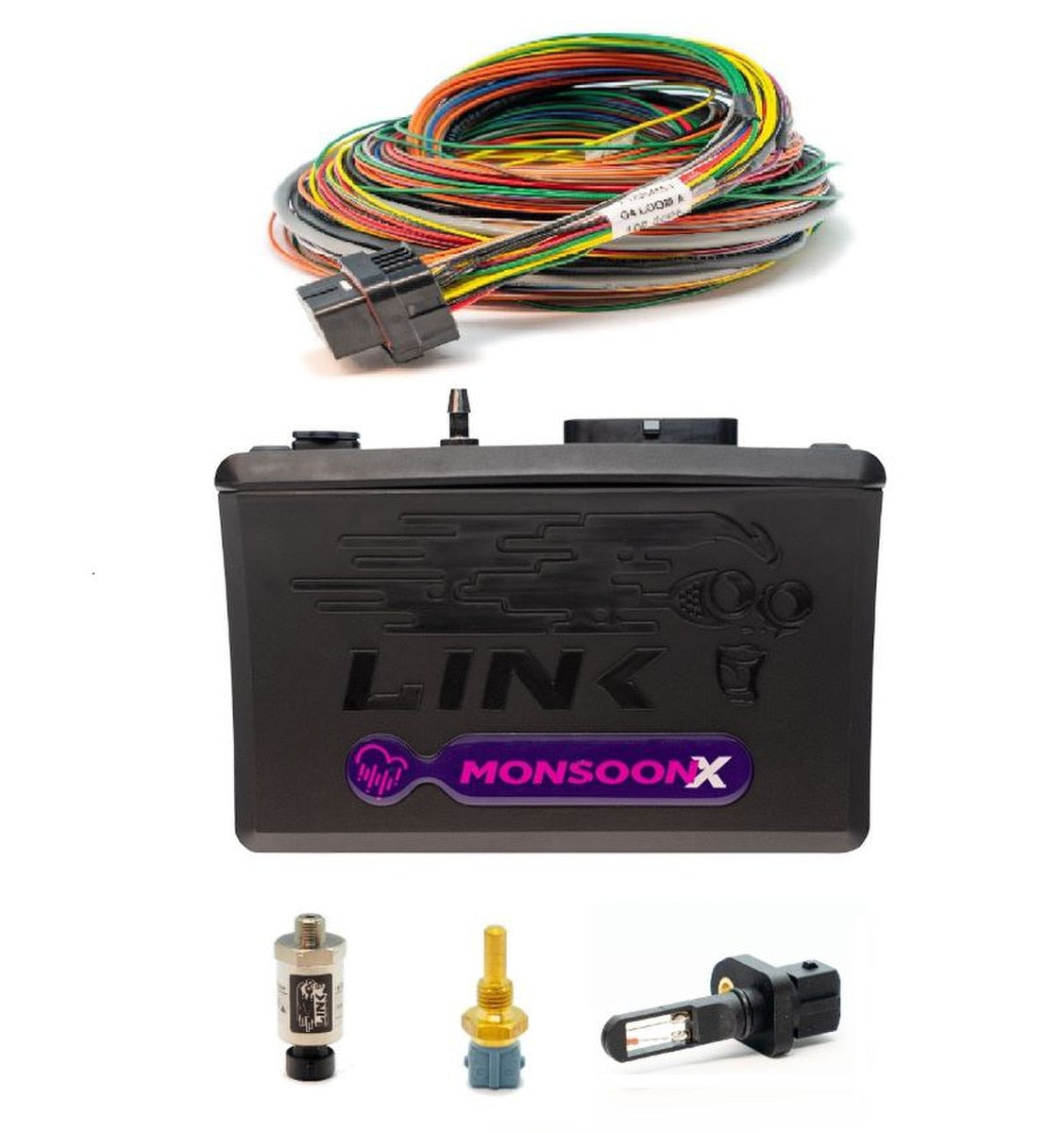

Link G4X MonsoonX Wire-In Bundle with Loom and Sensors (127-9800B)
$2,752.51
Taxes and shipping shown at checkout. Typical delivery is 3 to 7 business days across Canada.
✓ Confirmed-fit parts — add your vehicle in your Garage to check fitment.
This bundle packages the G4X MonsoonX with a 2.5 m A loom and three Link sensors, covering the ECU-side wiring and the basic temperature and pressure inputs for an engine up to four cylinders or two rotors. The MonsoonX uses a single connector, so the one loom is all the ECU needs, and its built-in MAP sensor saves fitting a separate one. It suits naturally aspirated or turbo builds after VVT, closed-loop boost, launch control or anti-lag, keeping in mind that the limited I/O means not every feature can run at once.
In the bundle
- G4X MonsoonX wire-in ECU (127-4000), with its USB tuning cable, mounting bracket and quick start guide
- 2LA A loom, 2.5 m
- IATB air temperature sensor
- NTC12 coolant temperature sensor
- PS150 pressure sensor, up to 10 bar
Highlights
- The A loom comes with the Superseal 1.0 ECU plug fitted and every position populated, colour-coded to Link's wiring manuals and left unterminated at the far end
- Built-in MAP sensor in the ECU
- VVT control, open- and closed-loop boost control and dual closed-loop lambda
- Launch control, anti-lag, gear shift and paddle shift control, as I/O allows
- Flex fuel, flexible engine protection limiters, a built-in trigger oscilloscope and 512MB of logging
Specifications
- Engine support: up to 4 cylinders or 2 rotors, sequential injection and direct spark
- ECU outputs: 4 injection, 4 ignition, 6 auxiliary
- ECU inputs: 4 digital, 2 temperature, 4 analogue, 2 trigger, 1 knock (the knock input shares a pin with digital input 4)
- MAP sensor: built into the ECU
- E-throttle: not supported
- Wideband lambda: add an external controller such as Link's CAN Lambda
- Communications: 1 CAN bus, Mini-B USB tuning port
- Data logging: 512MB, up to 100kHz total logging rate, 250 channels
- ECU enclosure: glass-filled nylon, 95 x 130 x 45 mm (3.74 x 5.12 x 1.77 in), 220 g
- ECU electrical: 6.5 to 24V operating range, 36V maximum input, 3A maximum continuous draw
- Loom: 2.5 m, 0.75 mm² wire for the power feed and power grounds, 0.5 mm² for all other circuits
- NTC12 sensor: M12 x 1.5 thread, -40 to 130°C
- IATB sensor: open-element NTC air temperature sensor, -40 to 125°C
- Software: PCLink, a free download from Link
