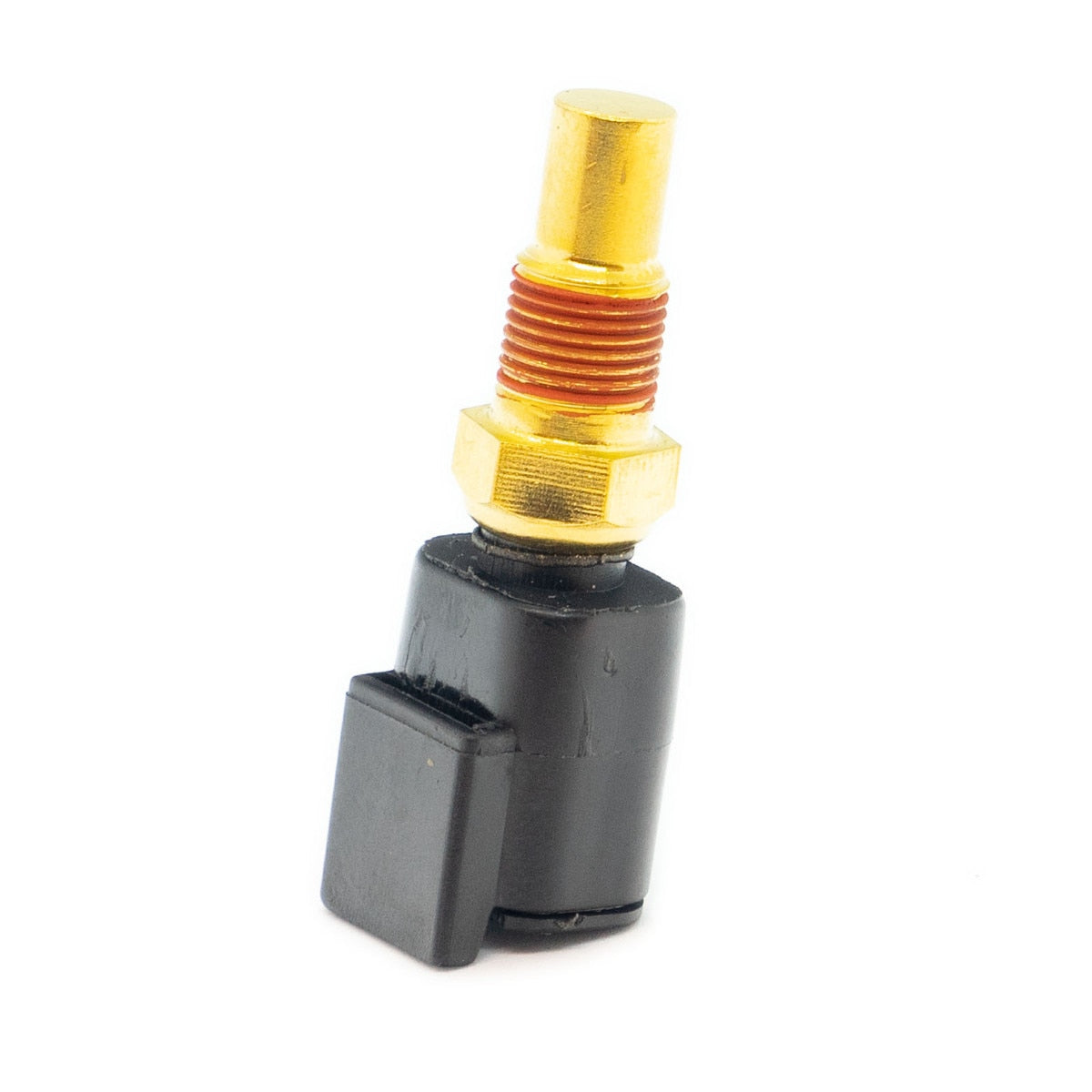

Link Coolant and Fluid Temperature Sensor, 1/8 NPT (NTC1-8)
$100.75
Taxes and shipping shown at checkout. Typical delivery is 3 to 7 business days across Canada.
✓ Confirmed-fit parts — add your vehicle in your Garage to check fitment.
A compact NTC temperature sensor with a 1/8 NPT thread for coolant, engine oil, transmission oil, fuel and other compatible fluids, backed by Link's proven calibration data.
Highlights
- NTC thermistor, two-wire (signal and sensor ground)
- 1/8 in NPT thread
- Reads coolant, engine oil, transmission oil and fuel temperature
- Deutsch DTM 2-pin connector kit included
- Works with all Link ECUs and other aftermarket ECUs that support NTC sensors
- Weld-in mounting bosses available in aluminium (IAT1-8MA) and steel (IAT1-8MS)
Specifications
- Sensor type: NTC thermistor
- Thread: 1/8 in NPT
- Connector: Deutsch DTM 2-pin (PKD2F, kit PN 101-0131)
- PC Link calibration: "Link NTC1-8 & IAT1-8" or "Delphi AC IAT"
- Resistance: 9,256 ohm at 0 °C, 3,457 ohm at 20 °C, 175 ohm at 100 °C
- In the box: sensor, Deutsch 2-way connector kit
